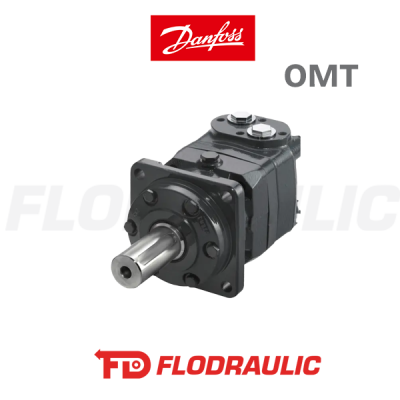

151B0372 - OMT 400 ORBITAL MOTOR - DANFOSS
zoom_out_map
chevron_left chevron_right
Contact us about this product Did not find what you were looking for?

151B0372 - OMT 400 ORBITAL MOTOR - DANFOSS

Model code: OMT-0400-A-EB-G21-AD-1D-D21-A-A-1B-0-N-NN-AAE21-NN-NN-NN-SP-NNN

Motor Series: OMT Series

Valve system: Disc valve with valve drive

Orbital gearwheel set type: Geroler

Price available only for registered users

OMT

OMT/OMV series characteristics:

  • Motors with corrosion resistant parts
  • Wheel motors with recessed mounting flange
  • Motors with needle bearings
  • Motors in low leakage version
  • Motors with integrated brake
  • Motors with speed sensor

Features and benefits:

  • Corrosion-resistant to withstand the most challenging conditions
  • Dust seal cap for resistance to high dust concentrations
  • Robust cardan shaft for longer life in demanding applications
  • Low leakage version for energy savings
  • Recessed mounting flange on wheel motors, giving optimal utilization of bearing capacity

Application opportunities

Our medium-size motors are easily installed in, for example, forklift trucks, turf care machinery, aerial lifts, winches, harvesting and planting equipment, sweepers and spreaders.

151B0372
Danfoss
Mounting Flange
4 Bolt - Square
Shaft Style
Splined
Shaft Size
Dia. 1 1/2 inch, 17T, M12 x 1.75-6H thread in shaft end
Shaft Key
n/a
Port Style
Sideport - staggered
Port Dimension
G 3/4, 4 x M10 block mounting threads
Drain Port Dimension
G 1/4
Painted
yes
Seal Kit
151B0161
