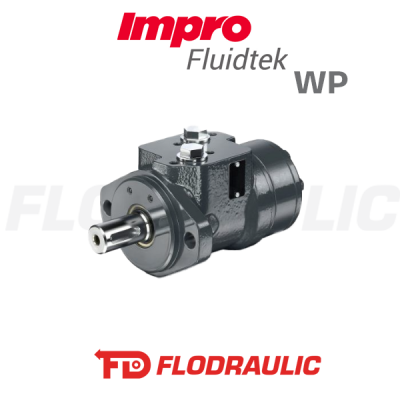

11200460 - WP 155 ORBITAL MOTOR - IMPRO FLUIDTEK
Motore Orbitale: 155200A6312BAAAAP
- WP 155 Series
- Cylindrical Shaft Ø25
The WP motor series is an economical alternative to a more complex roller gear set design and still provides high efficiency across a wide performance range. These motors are intended for light-duty applications requiring high torque in a compact package and are suitable for industrial and mobile applications including car wash brushes, food processing equipment, conveyors, machine tools, agricultural equipment, sweepers, skid steer attachments, and more.
11200460
- Mounting Flange
- 2 Bolt - A
- Shaft Style
- Straight
- Shaft Size
- Dia. 25 mm - M8 tap
- Shaft Key
- 8 x 7 x 31.5 mm
- Port Style
- Side ported - offset manifold (4xM8)
- Port Dimension
- G 1/2
- Drain Port Style
- Standard - end cover
- Drain Port Dimension
- G 1/4
- Painted
- Black
