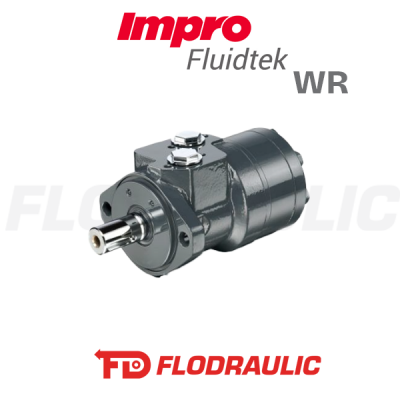

11199551 - WR 255 ORBITAL MOTOR - IMPRO FLUIDTEK

11199551 - WR ORBITAL MOTOR

Displacement: 80

Diameter: Ø25

Port size: Side port

*Image for illustration purposes only.

Price available only for registered users

The WR Series motors incorporate the latest advances for smooth performance, efficiency and durability. Featuring an optimized rotor geometry with seven precision rollers to eliminate sliding friction and provide rolling contact between the rotor and stator, thus increasing motor efficiency. A three-zone spool valve, integral check valves and a provision for a case drain reduce pressure on internal seals to improve product life. A wide variety of mounting, shaft, motor displacement and porting options are available to meet all application needs.

11199551
Impro Fluidtek
Mounting Flange
2-Hole SAE A
Shaft Style
Cylindrical
Shaft Size
25 mm ; M8 x 1,25 tap
Shaft Key
None
Port Style
Side port
Port Dimension
1/2" BSP.F Offset Manifold (Tp)
Drain Port Style
None
Drain Port Dimension
None
