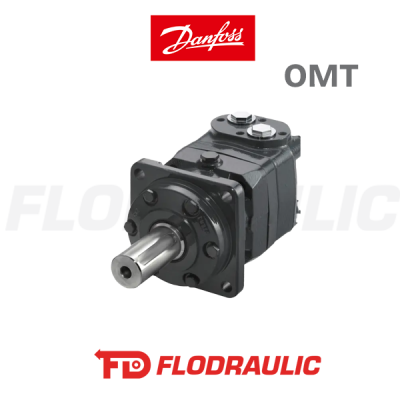

151B0341 - MOTORE ORBITALE OMT 400 - DANFOSS

Model code: OMT-0400-A-EB-G21-AD-1D-D21-A-A-1B-0-N-NN-NNNNN-NN-NN-NN-SP-NNN

Motor Series: OMT Series

Valve system: Disc valve with valve drive

Orbital gearwheel set type: Geroler

Per completare il tuo acquisto Registrati

____________________________________

Ampio Catalogo Prodotti
Spedizone Rapida!
Chat su WhatsApp
151B0341
Danfoss
Mounting Flange
4 Bolt - Square
Shaft Style
Splined
Shaft Size
Dia. 1 1/2 inch, 17T, M12 x 1.75-6H thread in shaft end
Shaft Key
n/a
Port Style
Sideport - staggered
Port Dimension
G 3/4, 4 x M10 block mounting threads
Drain Port Dimension
G 1/4
Painted
No
Geometric Displacement
410.9 [25.07]
Seal Kit
151B0161
