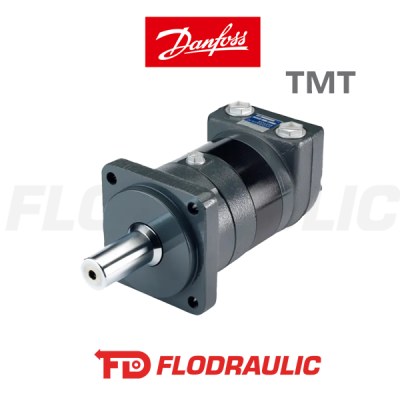

11085571 - MOTORE ORBITALE TMT 315 - DANFOSS
Model code: TMT-0315-A-NN-G18-AV-1D-A31-A-B-1B-0-N-NN-AAE27-NN-NN-NN-SP-NNN
Motor Series: TMT Series
Valve system: Disc valve with valve drive
11085571
- Mounting Flange
- 4 Bolt - Square
- Shaft Style
- Straight
- Shaft Size
- Dia. 40 mm, M12 x 1.75-6H thread in shaft end
- Shaft Key
- Rectangular key, A12 x 8 x 70 mm, DIN 6885
- Port Style
- Sideport - staggered
- Port Dimension
- G 3/4
- Drain Port Style
- G 1/4
- Painted
- Yes
- Seal Kit
- 151B0176
